Air Duct, Lower

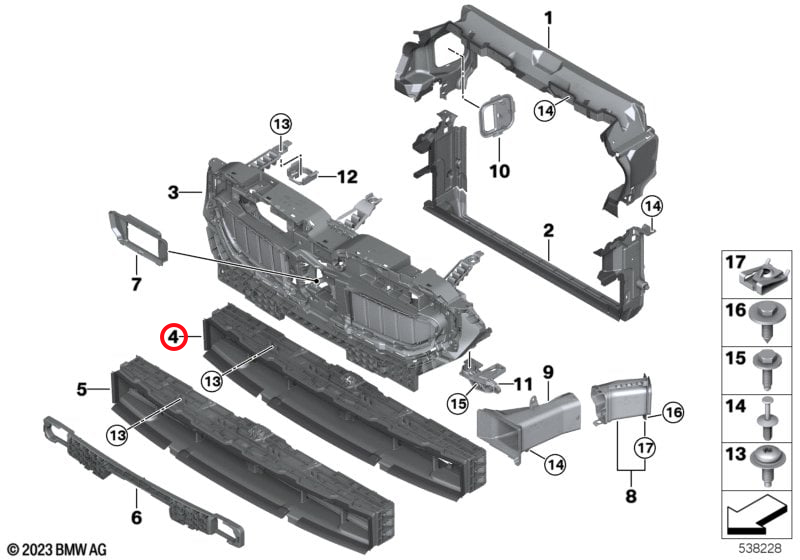

Genuine BMW lower air duct 51745A09B56 for selected European-specification BMW 5 Series G60 Saloon and G61 Touring models. This front lower air-routing component is identified as item 04 in the air-duct diagram.

Product details

• New genuine BMW part.
• Manufacturer part number: 51745A09B56 (51 74 5 A09 B56).
• Supplied individually: one lower air duct per order.
• Only item 04 is supplied; other diagram components and separate fixings are not included.

Check before ordering

The correct lower duct depends on the vehicle’s equipment specification:

• G60 Saloon without official-vehicle preparation: requires S138A=No, CO2 package S1CBA=No and Brazil country control S8LBA=No.
• G61 Touring without official-vehicle preparation: requires S138A=No and CO2 package S1CBA=No.
• Vehicles with official-vehicle preparation (S138A=Yes): also listed for the supported G60/G61 applications, except G60 520i with the B48P engine, type 21FJ.

Vehicles without official-vehicle preparation but with the CO2 package (S138A=No, S1CBA=Yes) are listed with the different lower air-flap-control duct, 51745A09B57. Check which version your vehicle requires.

Check the part number, model and equipment specification before ordering. If unsure, send your vehicle details so fitment can be checked.
